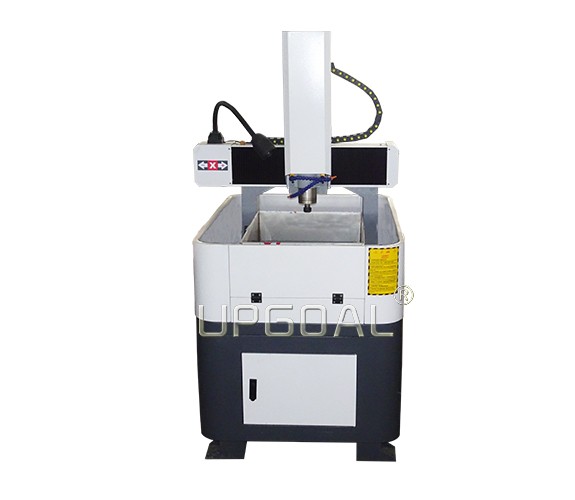

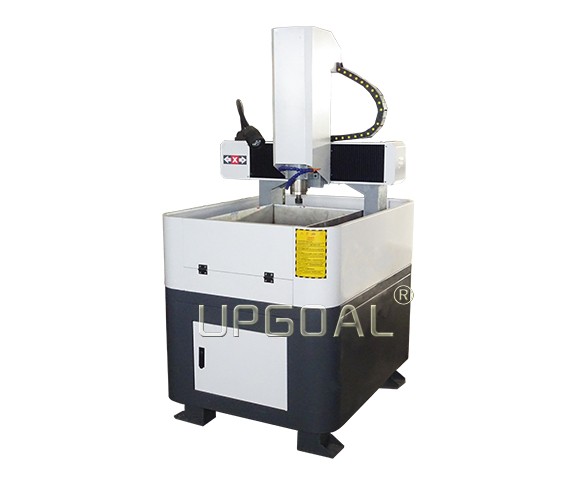

Small 400*400mm Heavy Duty Enclosed Metal CNC Engraving Machine
Brief Introduction:
Model: UG-4040
400*400*200mm
3.2kw water cooling spindle
Stainless steel water slot cooling system
Heavy duty cast iron structure
Leadshine hybrid servo motor driver
Applications
Mould of Copper, Iron, aluminum, stainless steel. Shoe mould, mobile mould, Red Copper electrode, Building model, name tag, copper stamp.
Features
1. Heavy duty cast iron as a whole with vibration Temper aging treatment ensures no deformation for long time.

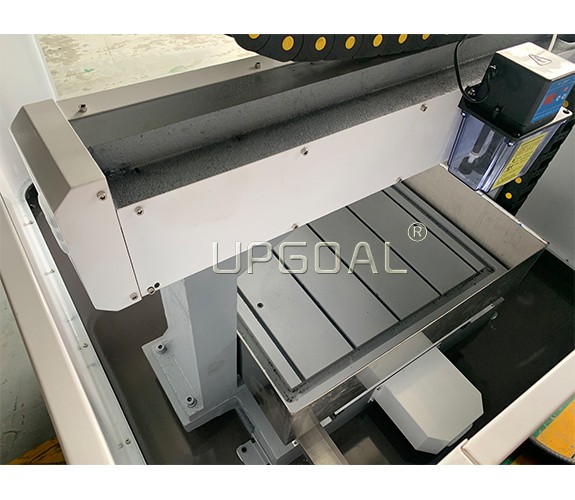

2.Cast iron Working table with platform moving type. Durable without deformation
enable positioning more preciously.
3.Equipped with Hiwin Taiwan linear square guide rail for XYZ-axis, effectively improved the precision.
4.Three axis with precision lead ball screw transmission ensure the engraving speed and accuracy.
5.High variable speed China HQD 3.2KW water cooling spindle, big torque, longer life, strong cutting
ability and continuous work for long time.

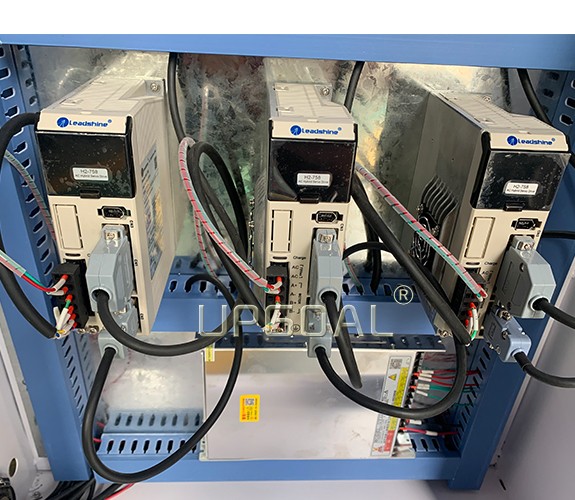

6.Leadshine hybrid servo motor and hybrid servo driver H2-758 for XYZ-axis, compared with the stepper motor, ensuring high speed and precision working
7.Optional DSP offline/Mach3/NcStudio controller

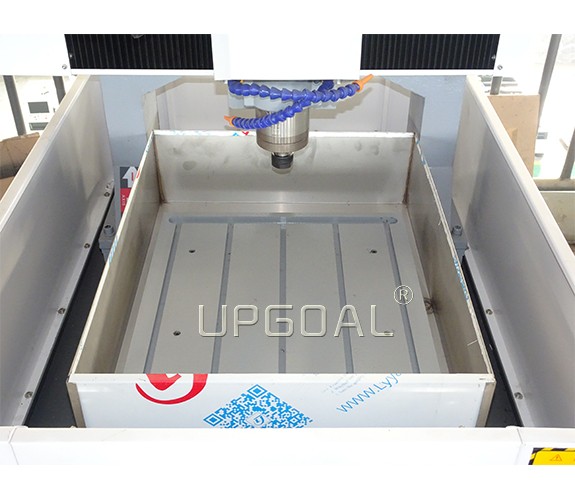

8.Stainless steel water slot cooling system, ensuring the cooling for the metal & hard materials, improving the processing precision.
9.Half closed cover design, and unique dust&water Proof design effectively protect the transmission parts from rust, dust &dirt.
10. Rationalized placement of the electronic parts. Optimized heat dissipation effect. Adopt high quality electronic parts, minimizing fault rate.
11.Auto lubrication system, more convenient for machine lubricating.
12. Auto tools calibration, conveineint for working
13.With the function of Break-point memory, power failure resuming and automatic home/orgin
correction function.Effectively ensure long time working precision.
14.Working Pause, Speed adjust, Working depth adjust at any time while working. Preview the 2D&3D working result With simulation function. Variable Speed is suitable for various materials and industry.
15.Favorable compatibility with various CAM softwares such as Type3/Artcam/Mastercam/Caxa. With intelligent over limit protection function which can stop the mechanical collision due to unproper size given to the design.
Effective working area | 400(X)mm*400Y)mm*200(Z)mm |
Materials | Heavy duty whole cast iron structure |
Protection cover | Half enclosed |
Working table | Heavy cast iron T slot |
Moving type | Platform moving |
Guide rail | Linear square guide rail ( Hiwin, Taiwan) |
Transmission | Lead ball screw for XYZ-axis |
Driving mode | China leadshine hybrid servo motor and driver ( H2-758) |
Spindle motor | 3.2kw water cooling spindle( HQD, China) |
Spindle speed | 0-24000rpm |
Inverter | Sunfar/Fuling |
Voltage | AC 220V± 10%, 50/60Hz, sinle phase or AC 380V± 10%, 50/60Hz, three phases |
Traveling speed | 8000mm/min |
Engraving speed | 6000mm/min |
Machine accuracy | 0.02mm |
Control system | DSP offline control system, RichAuto A11E |
Suitable software | Artcam, Type3, Ucancam V9,etc |
Carving Instructions | G code *Uoo *mmg *plt HPGL |
Running environment temperature | 0-45 ℃ |
Relative humidity | 30%-75% |
Cooling system | Stainless steel water slot cooling system |
Tool calibration | Automatic |
| Lubrication system | Automatic |
Certificate | CE |
